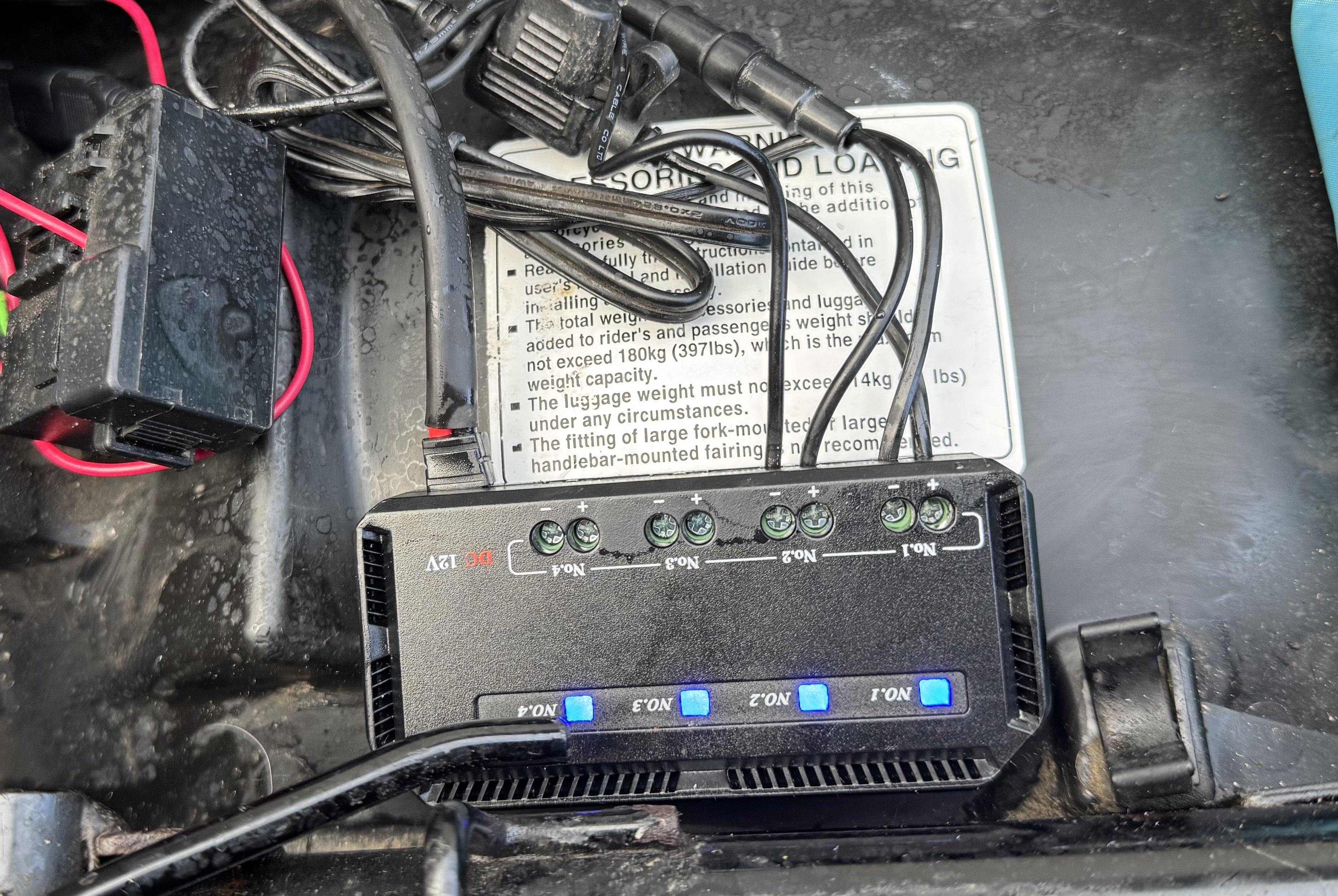

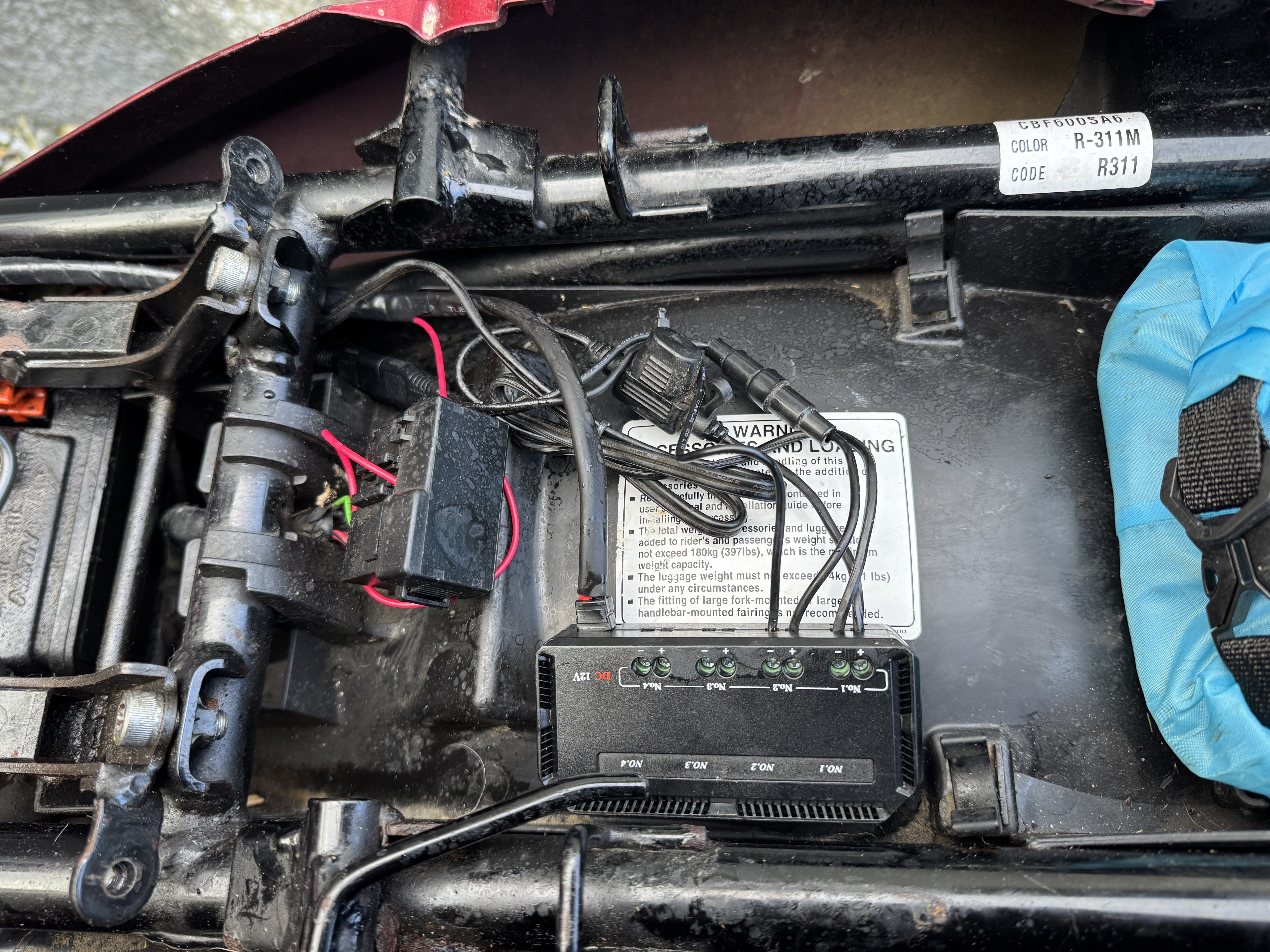

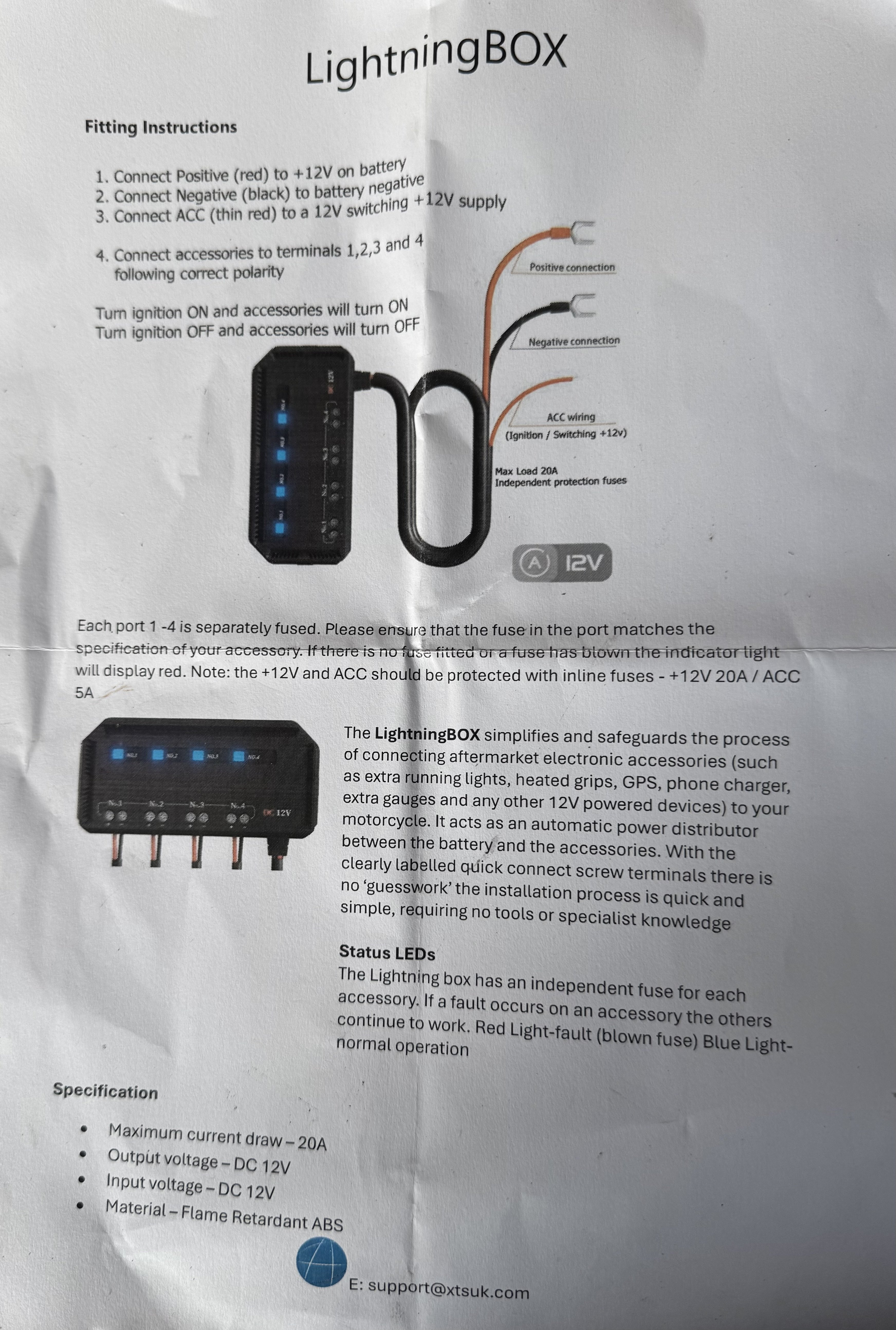

Saul Posted January 6 Share Posted January 6 As more electrical accessories become part of every day biking we are going to have to make provision for them if our bikes are not compliant . I currently have heated grips and a USB charging socket in my bike that was wired directly to the battery. In theory they should cause no problem as the Oxford Grips have a smart controller that will automatically turn off after 15 mins if no charging is detected. Also the USB sockets will draw no power unless being used. The problem is that I don’t trust them. I want everything to cease once the key is off. So with this being the case I bought a branded Lightening Box. Which takes power directly from the battery with a trigger lead to be attached to a switched live circuit. So if the ignition is on the Lightening box is, if off the same. There are several similar products to achieve this. Thunder Box (approx £85) Lightning Box (approx £50) Oxford Box (approx £25). I bought the Lightening Box but wish I had gone with the Oxford one as it looks identical. I expect they are all sourced from China and that there are many other options than those I listed. Here is the Lightening box in site on my Honda CBF600 which doesn’t have a great deal of space to fit such things. I took the trigger from the main fuse box on the instrument circuit. You can see the red wire in the picture. Ignition off Ignition on Wiring diagram Easy enough project but I thought I would put it on here if anyone wanted to do the same. Of course you set up your own relay feed triggered in the same way but to do it in a tidy way for 4 circuits would be a challenge and I couldn’t be bothered on my bike with its limited space. If there wasn’t a bleddy great ABS pump under the seat I may have done. 4 Link to comment Share on other sites More sharing options...
Six30 Posted January 6 Share Posted January 6 Link to comment Share on other sites More sharing options...
boboneleg Posted January 6 Share Posted January 6 2 hours ago, Saul said: Also the USB sockets will draw no power unless being used. The most common complaint for a parasitic drawal . Nice work @Saul I use an Eastern Beaver on my Donkey (yes really ) made in Japan and good quality ............. https://www.easternbeaver.com/Main/Wiring_Kits/Fuseboxes/PC-8/pc-8.html 3 Link to comment Share on other sites More sharing options...
Saul Posted January 6 Author Share Posted January 6 5 minutes ago, boboneleg said: The most common complaint for a parasitic drawal . Nice work @Saul I use an Eastern Beaver on my Donkey (yes really ) made in Japan and good quality ............. https://www.easternbeaver.com/Main/Wiring_Kits/Fuseboxes/PC-8/pc-8.html That's good to know about the parasitic draw, I was told they didn't use anything unless charging something but I didn't trust the feckers May get an Eastern Beaver for my Hornet, love that name 2 Link to comment Share on other sites More sharing options...
Catteeclan Posted January 6 Share Posted January 6 Nice work but cheaper with just a relay and a couple of inline fuses or fuse block.. 4 Link to comment Share on other sites More sharing options...
Saul Posted January 7 Author Share Posted January 7 12 hours ago, Catteeclan said: Nice work but cheaper with just a relay and a couple of inline fuses or fuse block.. I know I did address that under the pictures. Link to comment Share on other sites More sharing options...
Catteeclan Posted January 7 Share Posted January 7 3 minutes ago, Saul said: I know I did address that under the pictures. oh yea. 1 Link to comment Share on other sites More sharing options...
Buckster Posted January 7 Share Posted January 7 Why don’t you just use the switched feeds provided in the wiring loom for powered accessories? Link to comment Share on other sites More sharing options...
boboneleg Posted January 7 Share Posted January 7 13 hours ago, Catteeclan said: Nice work but cheaper with just a relay and a couple of inline fuses or fuse block.. That's how I used to do my electrics but a fuse box arrangement makes it so much neater 1 Link to comment Share on other sites More sharing options...
Saul Posted January 7 Author Share Posted January 7 15 minutes ago, Buckster said: Why don’t you just use the switched feeds provided in the wiring loom for powered accessories? I couldn't find any on the wiring diagram. Link to comment Share on other sites More sharing options...
Buckster Posted January 7 Share Posted January 7 My bike has at least eight different ones, five in the fairing and three under the seat, three of which are independently switched as well as only being live with the ignition. Link to comment Share on other sites More sharing options...
Saul Posted January 7 Author Share Posted January 7 1 minute ago, Buckster said: My bike has at least eight different ones, five in the fairing and three under the seat, three of which are independently switched as well as only being live with the ignition. If only I could afford a Harley 1 Link to comment Share on other sites More sharing options...
Buckster Posted January 7 Share Posted January 7 1 hour ago, Saul said: If only I could afford a Harley By the time you finish buying accessories to bring yours up to standard you probably could. 2 Link to comment Share on other sites More sharing options...
Saul Posted January 7 Author Share Posted January 7 2 hours ago, Buckster said: By the time you finish buying accessories to bring yours up to standard you probably could. Yeah true, but I would actually have to want one as well. 1 Link to comment Share on other sites More sharing options...
Buckster Posted January 7 Share Posted January 7 21 minutes ago, Saul said: Yeah true, but I would actually have to want one as well. Yes you are correct, it is too much bike for you. 1 Link to comment Share on other sites More sharing options...
Saul Posted January 7 Author Share Posted January 7 Too Many Tassles maybe. 2 Link to comment Share on other sites More sharing options...
Buckster Posted January 7 Share Posted January 7 3 hours ago, Saul said: Too Many Tassles maybe. Too many accessory ports apparently. 1 Link to comment Share on other sites More sharing options...
